Are geolocation errors fixed in Sentinel-2 Collection 1?
The Sentinel-2 Level-1C Collection 1 represents the product dataset generated starting from processing baseline 05.XX included, info: Here
The new dataset has improved geolocation accuracy, however, how much it is better than old processing baselines?
This post compared the old baseline dataset (N0206) and new dataset (N0500) when generating datacube.
Images download
{
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"properties": {},
"geometry": {
"coordinates": [ [ [ 13.029288736743347, 52.634922884068175 ], [ 13.471956009371272, 52.622877464731189 ], [ 13.450849545301718, 52.353626900881842 ], [ 13.010864900757346, 52.365588468359363 ], [ 13.029288736743347, 52.634922884068175 ] ] ],
"type": "Polygon"
}
}
]
}
Sentinel-2 A,B level-1C was downloaded from https://dataspace.copernicus.eu/, using OData API.
I downloaded all available Sentinel-2 A,B scences (cloud cover < 75 %) from 01-01-2018 to 31-12-2018 covering the above polygon (Tile X0069_Y0043 for FORCE people)
Each scene was downloaded twice, with two processing baselines 05.00 and 02.06, respectively
List of images with baseline 05.00
S2B_MSIL1C_20180223T101019_N0500_R022_T33UUU_20231014T014713 S2B_MSIL1C_20180223T101019_N0500_R022_T32UQD_20231014T014713 S2B_MSIL1C_20180213T101119_N0500_R022_T33UUU_20230805T112149 S2B_MSIL1C_20180206T102209_N0500_R065_T32UQD_20230823T090151 S2B_MSIL1C_20180216T102059_N0500_R065_T33UUU_20230914T160248 S2B_MSIL1C_20180213T101119_N0500_R022_T32UQD_20230805T112149 S2A_MSIL1C_20180228T101021_N0500_R022_T33UUU_20230919T074536 S2A_MSIL1C_20180303T102021_N0500_R065_T33UUU_20230731T050349 S2A_MSIL1C_20180303T102021_N0500_R065_T32UQD_20230731T050349 S2A_MSIL1C_20180228T101021_N0500_R022_T32UQD_20230919T074536 S2B_MSIL1C_20180213T101119_N0500_R022_T32UQD_20230913T093807 S2B_MSIL1C_20180206T102209_N0500_R065_T33UUU_20230823T090151 S2B_MSIL1C_20180226T102019_N0500_R065_T32UQD_20230912T031158 S2B_MSIL1C_20180114T101349_N0500_R022_T32UQD_20230802T002421 S2B_MSIL1C_20180114T101349_N0500_R022_T33UUU_20230802T002421 S2A_MSIL1C_20180208T101151_N0500_R022_T32UQD_20230912T100549 S2A_MSIL1C_20180208T101151_N0500_R022_T33UUU_20230912T100549 S2B_MSIL1C_20180216T102059_N0500_R065_T32UQD_20230731T201359 S2B_MSIL1C_20180216T102059_N0500_R065_T33UUU_20230731T201359 S2B_MSIL1C_20180213T101119_N0500_R022_T33UUU_20230913T093807 S2B_MSIL1C_20180104T101409_N0500_R022_T33UUU_20230903T075103 S2B_MSIL1C_20180104T101409_N0500_R022_T32UQD_20230903T075103 S2A_MSIL1C_20180201T102241_N0500_R065_T32UQD_20230903T171240 S2A_MSIL1C_20180201T102241_N0500_R065_T33UUU_20230903T171240 S2B_MSIL1C_20180216T102059_N0500_R065_T32UQD_20230914T160248 S2A_MSIL1C_20180608T101021_N0500_R022_T33UUU_20230715T050425 S2B_MSIL1C_20181103T102159_N0500_R065_T33UUU_20230727T072904 S2B_MSIL1C_20181103T102159_N0500_R065_T32UQD_20230727T072904 S2A_MSIL1C_20181006T101021_N0500_R022_T32UQD_20230620T072056 S2A_MSIL1C_20181006T101021_N0500_R022_T33UUU_20230620T072056 S2B_MSIL1C_20180507T102019_N0500_R065_T33UUU_20230816T094050 S2A_MSIL1C_20181019T102031_N0500_R065_T32UQD_20230812T151234 S2A_MSIL1C_20180618T101021_N0500_R022_T33UUU_20230715T054448 S2B_MSIL1C_20180623T101029_N0500_R022_T33UUU_20230723T103447 S2B_MSIL1C_20180623T101029_N0500_R022_T32UQD_20230723T103447 S2A_MSIL1C_20180529T101031_N0500_R022_T33UUU_20230822T213244 S2B_MSIL1C_20180514T101029_N0500_R022_T33UUU_20230905T185103 S2A_MSIL1C_20180522T102031_N0500_R065_T33UUU_20230717T204923 S2B_MSIL1C_20180524T101019_N0500_R022_T32UQD_20230828T190722 S2A_MSIL1C_20180402T102021_N0500_R065_T32UQD_20230907T223909 S2B_MSIL1C_20181011T101019_N0500_R022_T32UQD_20230715T190114 S2B_MSIL1C_20181021T101039_N0500_R022_T33UUU_20230731T173332 S2B_MSIL1C_20181031T101139_N0500_R022_T33UUU_20230706T042803 S2A_MSIL1C_20180509T101031_N0500_R022_T32UQD_20230824T225745 S2A_MSIL1C_20180509T101031_N0500_R022_T33UUU_20230824T225745 S2A_MSIL1C_20181019T102031_N0500_R065_T33UUU_20230812T151234 S2B_MSIL1C_20181011T101019_N0500_R022_T33UUU_20230715T190114 S2A_MSIL1C_20181016T101021_N0500_R022_T33UUU_20230709T145634 S2A_MSIL1C_20181016T101021_N0500_R022_T32UQD_20230709T145634 S2B_MSIL1C_20181021T101039_N0500_R022_T32UQD_20230731T173332 S2B_MSIL1C_20181031T101139_N0500_R022_T32UQD_20230706T042803 S2B_MSIL1C_20181014T102019_N0500_R065_T33UUU_20230709T010318 S2A_MSIL1C_20180402T102021_N0500_R065_T33UUU_20230907T223909 S2A_MSIL1C_20180611T102021_N0500_R065_T32UQD_20230714T042915 S2B_MSIL1C_20180524T101019_N0500_R022_T33UUU_20230828T190722 S2A_MSIL1C_20180522T102031_N0500_R065_T32UQD_20230717T204923 S2A_MSIL1C_20180422T102031_N0500_R065_T33UUU_20230915T072546 S2B_MSIL1C_20180626T102019_N0500_R065_T32UQD_20230729T104903 S2A_MSIL1C_20180611T102021_N0500_R065_T33UUU_20230714T042915 S2A_MSIL1C_20180608T101021_N0500_R022_T32UQD_20230715T050425 S2A_MSIL1C_20180618T101021_N0500_R022_T32UQD_20230715T054448 S2A_MSIL1C_20180529T101031_N0500_R022_T32UQD_20230822T213244 S2A_MSIL1C_20180601T102021_N0500_R065_T33UUU_20230901T204937 S2B_MSIL1C_20180606T102019_N0500_R065_T32UQD_20230823T212831 S2B_MSIL1C_20180606T102019_N0500_R065_T33UUU_20230823T212831 S2A_MSIL1C_20180906T101021_N0500_R022_T33UUU_20230712T073442 S2B_MSIL1C_20180417T102019_N0500_R065_T32UQD_20230910T012850 S2A_MSIL1C_20180419T101031_N0500_R022_T32UQD_20230724T113059 S2B_MSIL1C_20181024T102059_N0500_R065_T32UQD_20230816T014419 S2B_MSIL1C_20181024T102059_N0500_R065_T33UUU_20230816T014419 S2A_MSIL1C_20181105T101211_N0500_R022_T33UUU_20230726T080614 S2A_MSIL1C_20180429T101031_N0500_R022_T33UUU_20230815T234731 S2A_MSIL1C_20180429T101031_N0500_R022_T32UQD_20230815T234731 S2B_MSIL1C_20180504T101029_N0500_R022_T32UQD_20230830T030539 S2B_MSIL1C_20180417T102019_N0500_R065_T33UUU_20230910T012850 S2B_MSIL1C_20180507T102019_N0500_R065_T32UQD_20230816T094050 S2B_MSIL1C_20180514T101029_N0500_R022_T32UQD_20230905T185103 S2B_MSIL1C_20180427T102019_N0500_R065_T32UQD_20230913T145646 S2B_MSIL1C_20180427T102019_N0500_R065_T33UUU_20230913T145646 S2A_MSIL1C_20180409T101031_N0500_R022_T32UQD_20230908T033301 S2B_MSIL1C_20180822T101019_N0500_R022_T32UQD_20230730T193531 S2B_MSIL1C_20181014T102019_N0500_R065_T32UQD_20230709T010318 S2A_MSIL1C_20181105T101211_N0500_R022_T32UQD_20230726T080614 S2B_MSIL1C_20180914T102019_N0500_R065_T33UUU_20230730T123627 S2B_MSIL1C_20180914T102019_N0500_R065_T32UQD_20230730T123627 S2A_MSIL1C_20180731T102021_N0500_R065_T33UUU_20230722T174539 S2A_MSIL1C_20180701T102021_N0500_R065_T33UUU_20230810T185705 S2A_MSIL1C_20180919T102021_N0500_R065_T33UUU_20230707T161354 S2B_MSIL1C_20180805T102019_N0500_R065_T33UUU_20230731T061306 S2A_MSIL1C_20180909T102021_N0500_R065_T32UQD_20230819T222431 S2A_MSIL1C_20180906T101021_N0500_R022_T32UQD_20230712T073442 S2B_MSIL1C_20180716T102019_N0500_R065_T33UUU_20230819T232616 S2A_MSIL1C_20180807T101021_N0500_R022_T33UUU_20230802T172509 S2A_MSIL1C_20180731T102021_N0500_R065_T32UQD_20230722T174539 S2B_MSIL1C_20180713T101029_N0500_R022_T33UUU_20230819T021044 S2B_MSIL1C_20180713T101029_N0500_R022_T32UQD_20230819T021044 S2A_MSIL1C_20180708T101031_N0500_R022_T32UQD_20230713T014306 S2B_MSIL1C_20180924T102019_N0500_R065_T33UUU_20230708T124318 S2A_MSIL1C_20180807T101021_N0500_R022_T32UQD_20230802T172509 S2B_MSIL1C_20180723T101019_N0500_R022_T32UQD_20230814T073403 S2B_MSIL1C_20180924T102019_N0500_R065_T33UUU_20230823T162156 S2B_MSIL1C_20180703T101029_N0500_R022_T33UUU_20230813T024233 S2B_MSIL1C_20180901T101019_N0500_R022_T32UQD_20230805T085247 S2A_MSIL1C_20180419T101031_N0500_R022_T33UUU_20230724T113059 S2B_MSIL1C_20180504T101029_N0500_R022_T33UUU_20230830T030539 S2A_MSIL1C_20180422T102031_N0500_R065_T32UQD_20230915T072546 S2A_MSIL1C_20180409T101031_N0500_R022_T33UUU_20230908T033301 S2B_MSIL1C_20180726T102019_N0500_R065_T33UUU_20230811T100329 S2B_MSIL1C_20180726T102019_N0500_R065_T32UQD_20230811T100329 S2A_MSIL1C_20180929T102021_N0500_R065_T33UUU_20230805T085214 S2A_MSIL1C_20180909T102021_N0500_R065_T33UUU_20230819T222431 S2A_MSIL1C_20180919T102021_N0500_R065_T32UQD_20230707T161354 S2A_MSIL1C_20180721T102021_N0500_R065_T33UUU_20230713T210502 S2A_MSIL1C_20180512T102031_N0500_R065_T33UUU_20230904T090328 S2A_MSIL1C_20180512T102031_N0500_R065_T32UQD_20230904T090328 S2A_MSIL1C_20180728T101031_N0500_R022_T33UUU_20230806T195605 S2B_MSIL1C_20180822T101019_N0500_R022_T33UUU_20230730T193531 S2B_MSIL1C_20180911T101019_N0500_R022_T33UUU_20230825T214757 S2B_MSIL1C_20180904T102019_N0500_R065_T32UQD_20230824T081418 S2B_MSIL1C_20180716T102019_N0500_R065_T32UQD_20230819T232616 S2B_MSIL1C_20180723T101019_N0500_R022_T33UUU_20230814T073403 S2B_MSIL1C_20180703T101029_N0500_R022_T32UQD_20230813T024233 S2B_MSIL1C_20180924T102019_N0500_R065_T32UQD_20230823T162156 S2A_MSIL1C_20180728T101031_N0500_R022_T32UQD_20230806T195605 S2B_MSIL1C_20180815T102019_N0500_R065_T32UQD_20230809T214015 S2B_MSIL1C_20180805T102019_N0500_R065_T32UQD_20230731T061306 S2A_MSIL1C_20180929T102021_N0500_R065_T32UQD_20230805T085214 S2B_MSIL1C_20180924T102019_N0500_R065_T32UQD_20230708T124318 S2B_MSIL1C_20180911T101019_N0500_R022_T32UQD_20230825T214757 S2B_MSIL1C_20180815T102019_N0500_R065_T33UUU_20230809T214015 S2B_MSIL1C_20180904T102019_N0500_R065_T33UUU_20230824T081418 S2A_MSIL1C_20180708T101031_N0500_R022_T33UUU_20230713T014306 S2A_MSIL1C_20180701T102021_N0500_R065_T32UQD_20230810T185705 S2B_MSIL1C_20180901T101019_N0500_R022_T33UUU_20230805T085247
List of images with baseline 02.06
S2B_MSIL1C_20180104T101409_N0206_R022_T32UQD_20180104T121410 S2B_MSIL1C_20180104T101409_N0206_R022_T33UUU_20180104T121410 S2B_MSIL1C_20180114T101349_N0206_R022_T32UQD_20180114T121005 S2B_MSIL1C_20180114T101349_N0206_R022_T33UUU_20180114T121005 S2B_MSIL1C_20180216T102059_N0206_R065_T32UQD_20180216T140508 S2A_MSIL1C_20180201T102241_N0206_R065_T33UUU_20180201T140542 S2A_MSIL1C_20180201T102241_N0206_R065_T32UQD_20180201T140542 S2A_MSIL1C_20180228T101021_N0206_R022_T32UQD_20180228T154713 S2A_MSIL1C_20180228T101021_N0206_R022_T33UUU_20180228T154713 S2B_MSIL1C_20180223T101019_N0206_R022_T32UQD_20180223T153849 S2B_MSIL1C_20180206T102209_N0206_R065_T32UQD_20180206T140356 S2B_MSIL1C_20180206T102209_N0206_R065_T33UUU_20180206T140356 S2A_MSIL1C_20180208T101151_N0206_R022_T32UQD_20180208T135551 S2A_MSIL1C_20180208T101151_N0206_R022_T33UUU_20180208T135551 S2B_MSIL1C_20180213T101119_N0206_R022_T33UUU_20180213T135340 S2B_MSIL1C_20180216T102059_N0206_R065_T33UUU_20180216T122659 S2B_MSIL1C_20180216T102059_N0206_R065_T33UUU_20180216T140508 S2B_MSIL1C_20180226T102019_N0206_R065_T32UQD_20180226T154425 S2A_MSIL1C_20180303T102021_N0206_R065_T32UQD_20180303T135828 S2A_MSIL1C_20180402T102021_N0206_R065_T32UQD_20180402T155007 S2A_MSIL1C_20180402T102021_N0206_R065_T33UUU_20180402T155007 S2A_MSIL1C_20180419T101031_N0206_R022_T32UQD_20180419T111252 S2A_MSIL1C_20180419T101031_N0206_R022_T33UUU_20180419T111252 S2A_MSIL1C_20180429T101031_N0206_R022_T32UQD_20180429T110941 S2A_MSIL1C_20180422T102031_N0206_R065_T32UQD_20180422T141352 S2A_MSIL1C_20180409T101031_N0206_R022_T32UQD_20180409T154909 S2A_MSIL1C_20180409T101031_N0206_R022_T33UUU_20180409T154909 S2B_MSIL1C_20180417T102019_N0206_R065_T32UQD_20180417T140522 S2A_MSIL1C_20180701T102021_N0206_R065_T32UQD_20180701T123211 S2A_MSIL1C_20180701T102021_N0206_R065_T33UUU_20180701T123211 S2B_MSIL1C_20180703T101029_N0206_R022_T32UQD_20180703T135836 S2B_MSIL1C_20180716T102019_N0206_R065_T33UUU_20180716T154656 S2B_MSIL1C_20180716T102019_N0206_R065_T32UQD_20180716T154656 S2A_MSIL1C_20180708T101031_N0206_R022_T32UQD_20180708T121640 S2A_MSIL1C_20180708T101031_N0206_R022_T33UUU_20180708T121640 S2B_MSIL1C_20180703T101029_N0206_R022_T33UUU_20180703T135836 S2B_MSIL1C_20180713T101029_N0206_R022_T33UUU_20180713T135922 S2B_MSIL1C_20180713T101029_N0206_R022_T32UQD_20180713T135922 S2B_MSIL1C_20180213T101119_N0206_R022_T32UQD_20180213T135340 S2B_MSIL1C_20180216T102059_N0206_R065_T32UQD_20180216T122659 S2B_MSIL1C_20180223T101019_N0206_R022_T33UUU_20180223T153849 S2B_MSIL1C_20180226T102019_N0206_R065_T33UUU_20180226T154425 S2A_MSIL1C_20180303T102021_N0206_R065_T33UUU_20180303T135828 S2B_MSIL1C_20181014T102019_N0206_R065_T32UQD_20181014T140123 S2B_MSIL1C_20181014T102019_N0206_R065_T33UUU_20181014T140123 S2B_MSIL1C_20181021T101039_N0206_R022_T33UUU_20181021T141054 S2A_MSIL1C_20181006T101021_N0206_R022_T33UUU_20181006T103236 S2A_MSIL1C_20181016T101021_N0206_R022_T33UUU_20181016T121930 S2A_MSIL1C_20181016T101021_N0206_R022_T32UQD_20181016T121930 S2A_MSIL1C_20181006T101021_N0206_R022_T32UQD_20181006T103236 S2B_MSIL1C_20181011T101019_N0206_R022_T32UQD_20181011T122059 S2B_MSIL1C_20181011T101019_N0206_R022_T33UUU_20181011T122059 S2A_MSIL1C_20181019T102031_N0206_R065_T32UQD_20181019T123546 S2A_MSIL1C_20181019T102031_N0206_R065_T33UUU_20181019T123546 S2B_MSIL1C_20181021T101039_N0206_R022_T32UQD_20181021T141054 S2B_MSIL1C_20181024T102059_N0206_R065_T32UQD_20181024T160131 S2B_MSIL1C_20181024T102059_N0206_R065_T33UUU_20181024T160131 S2B_MSIL1C_20181031T101139_N0206_R022_T32UQD_20181031T122100 S2B_MSIL1C_20181031T101139_N0206_R022_T33UUU_20181031T122100 S2A_MSIL1C_20181105T101211_N0206_R022_T33UUU_20181105T104758 S2A_MSIL1C_20181105T101211_N0206_R022_T32UQD_20181105T104758 S2B_MSIL1C_20180417T102019_N0206_R065_T33UUU_20180417T140522 S2A_MSIL1C_20180422T102031_N0206_R065_T33UUU_20180422T141352 S2B_MSIL1C_20180427T102019_N0206_R065_T32UQD_20180427T123359 S2B_MSIL1C_20180427T102019_N0206_R065_T33UUU_20180427T123359 S2A_MSIL1C_20180429T101031_N0206_R022_T33UUU_20180429T110941 S2A_MSIL1C_20180529T101031_N0206_R022_T33UUU_20180529T110633 S2B_MSIL1C_20180504T101029_N0206_R022_T32UQD_20180504T122043 S2A_MSIL1C_20180509T101031_N0206_R022_T33UUU_20180509T135043 S2B_MSIL1C_20180507T102019_N0206_R065_T32UQD_20180507T123037 S2B_MSIL1C_20180507T102019_N0206_R065_T33UUU_20180507T123037 S2A_MSIL1C_20180721T102021_N0206_R065_T32UQD_20180721T123132 S2A_MSIL1C_20180721T102021_N0206_R065_T33UUU_20180721T123132 S2B_MSIL1C_20180723T101019_N0206_R022_T32UQD_20180723T153601 S2B_MSIL1C_20180723T101019_N0206_R022_T33UUU_20180723T153601 S2B_MSIL1C_20180726T102019_N0206_R065_T32UQD_20180726T142914 S2B_MSIL1C_20180726T102019_N0206_R065_T33UUU_20180726T142914 S2A_MSIL1C_20180728T101031_N0206_R022_T33UUU_20180728T122204 S2A_MSIL1C_20180728T101031_N0206_R022_T32UQD_20180728T122204 S2A_MSIL1C_20180731T102021_N0206_R065_T33UUU_20180731T123616 S2A_MSIL1C_20180731T102021_N0206_R065_T32UQD_20180731T123616 S2B_MSIL1C_20180815T102019_N0206_R065_T32UQD_20180815T161223 S2B_MSIL1C_20180524T101019_N0206_R022_T32UQD_20180524T135449 S2A_MSIL1C_20180509T101031_N0206_R022_T32UQD_20180509T135043 S2B_MSIL1C_20180504T101029_N0206_R022_T33UUU_20180504T122043 S2A_MSIL1C_20180512T102031_N0206_R065_T32UQD_20180512T140712 S2A_MSIL1C_20180512T102031_N0206_R065_T33UUU_20180512T140712 S2B_MSIL1C_20180514T101029_N0206_R022_T33UUU_20180514T122533 S2B_MSIL1C_20180514T101029_N0206_R022_T32UQD_20180514T122533 S2A_MSIL1C_20180522T102031_N0206_R065_T32UQD_20180522T123546 S2A_MSIL1C_20180522T102031_N0206_R065_T33UUU_20180522T123546 S2A_MSIL1C_20180601T102021_N0206_R065_T33UUU_20180601T123308 S2B_MSIL1C_20180606T102019_N0206_R065_T32UQD_20180606T172808 S2B_MSIL1C_20180606T102019_N0206_R065_T33UUU_20180606T172808 S2A_MSIL1C_20180608T101021_N0206_R022_T33UUU_20180608T122149 S2A_MSIL1C_20180618T101021_N0206_R022_T33UUU_20180618T122134 S2B_MSIL1C_20180815T102019_N0206_R065_T33UUU_20180815T161223 S2B_MSIL1C_20180805T102019_N0206_R065_T33UUU_20180805T142133 S2B_MSIL1C_20180805T102019_N0206_R065_T32UQD_20180805T142133 S2A_MSIL1C_20180807T101021_N0206_R022_T33UUU_20180809T104755 S2A_MSIL1C_20180807T101021_N0206_R022_T32UQD_20180809T104755 S2B_MSIL1C_20180822T101019_N0206_R022_T33UUU_20180822T142412 S2B_MSIL1C_20180623T101029_N0206_R022_T33UUU_20180623T125002 S2B_MSIL1C_20180623T101029_N0206_R022_T32UQD_20180623T125002 S2B_MSIL1C_20180626T102019_N0206_R065_T32UQD_20180626T122000 S2B_MSIL1C_20181103T102159_N0206_R065_T32UQD_20181103T123639 S2B_MSIL1C_20181103T102159_N0206_R065_T33UUU_20181103T123639 S2B_MSIL1C_20180524T101019_N0206_R022_T33UUU_20180524T135449 S2A_MSIL1C_20180529T101031_N0206_R022_T32UQD_20180529T110633 S2A_MSIL1C_20180601T102021_N0206_R065_T32UQD_20180601T123308 S2A_MSIL1C_20180608T101021_N0206_R022_T32UQD_20180608T122149 S2A_MSIL1C_20180611T102021_N0206_R065_T32UQD_20180611T122250 S2A_MSIL1C_20180611T102021_N0206_R065_T33UUU_20180611T122250 S2A_MSIL1C_20180618T101021_N0206_R022_T32UQD_20180618T122134 S2B_MSIL1C_20180822T101019_N0206_R022_T32UQD_20180822T142412 S2B_MSIL1C_20180901T101019_N0206_R022_T33UUU_20180901T161702 S2B_MSIL1C_20180901T101019_N0206_R022_T32UQD_20180901T161702 S2B_MSIL1C_20180904T102019_N0206_R065_T32UQD_20180904T141830 S2B_MSIL1C_20180904T102019_N0206_R065_T33UUU_20180904T141830 S2A_MSIL1C_20180906T101021_N0206_R022_T33UUU_20180906T123122 S2A_MSIL1C_20180909T102021_N0206_R065_T32UQD_20180909T155923 S2A_MSIL1C_20180909T102021_N0206_R065_T33UUU_20180909T155923 S2A_MSIL1C_20180906T101021_N0206_R022_T32UQD_20180906T123122 S2B_MSIL1C_20180911T101019_N0206_R022_T32UQD_20180911T154541 S2B_MSIL1C_20180911T101019_N0206_R022_T33UUU_20180911T154541 S2B_MSIL1C_20180914T102019_N0206_R065_T32UQD_20180914T160343 S2B_MSIL1C_20180914T102019_N0206_R065_T33UUU_20180914T160343 S2A_MSIL1C_20180919T102021_N0206_R065_T33UUU_20180919T123234 S2A_MSIL1C_20180919T102021_N0206_R065_T32UQD_20180919T123234 S2B_MSIL1C_20180924T102019_N0206_R065_T32UQD_20180924T175930 S2B_MSIL1C_20180924T102019_N0206_R065_T33UUU_20180924T175930 S2B_MSIL1C_20180924T102019_N0206_R065_T33UUU_20180924T160501 S2B_MSIL1C_20180924T102019_N0206_R065_T32UQD_20180924T160501 S2A_MSIL1C_20180929T102021_N0206_R065_T32UQD_20180929T122813 S2A_MSIL1C_20180929T102021_N0206_R065_T33UUU_20180929T122813
Processing to Level-2
All images were processed using Framework for Operational Radiometric Correction for Environmental monitoring (FORCE)
To address the geolocation uncertainty, FORCE has built-in Coregistration function
For the experiments, I created 4 datacube versions with FORCE:
- Sentinel-2 images cube with baseline 0206, without co-registration
- Sentinel-2 images cube with baseline 0206, with co-registration
- Sentinel-2 images cube with baseline 0500, without co-registration
- Sentinel-2 images cube with baseline 0500, with co-registration
Results
1.Time-series visual comparisons
N0206 images without co-registration
N0206 images with co-registration
N0500 images without co-registration
N0500 images with co-registration
2.Time-series spectral (Pixels are close to two land cover types)
- Example 1

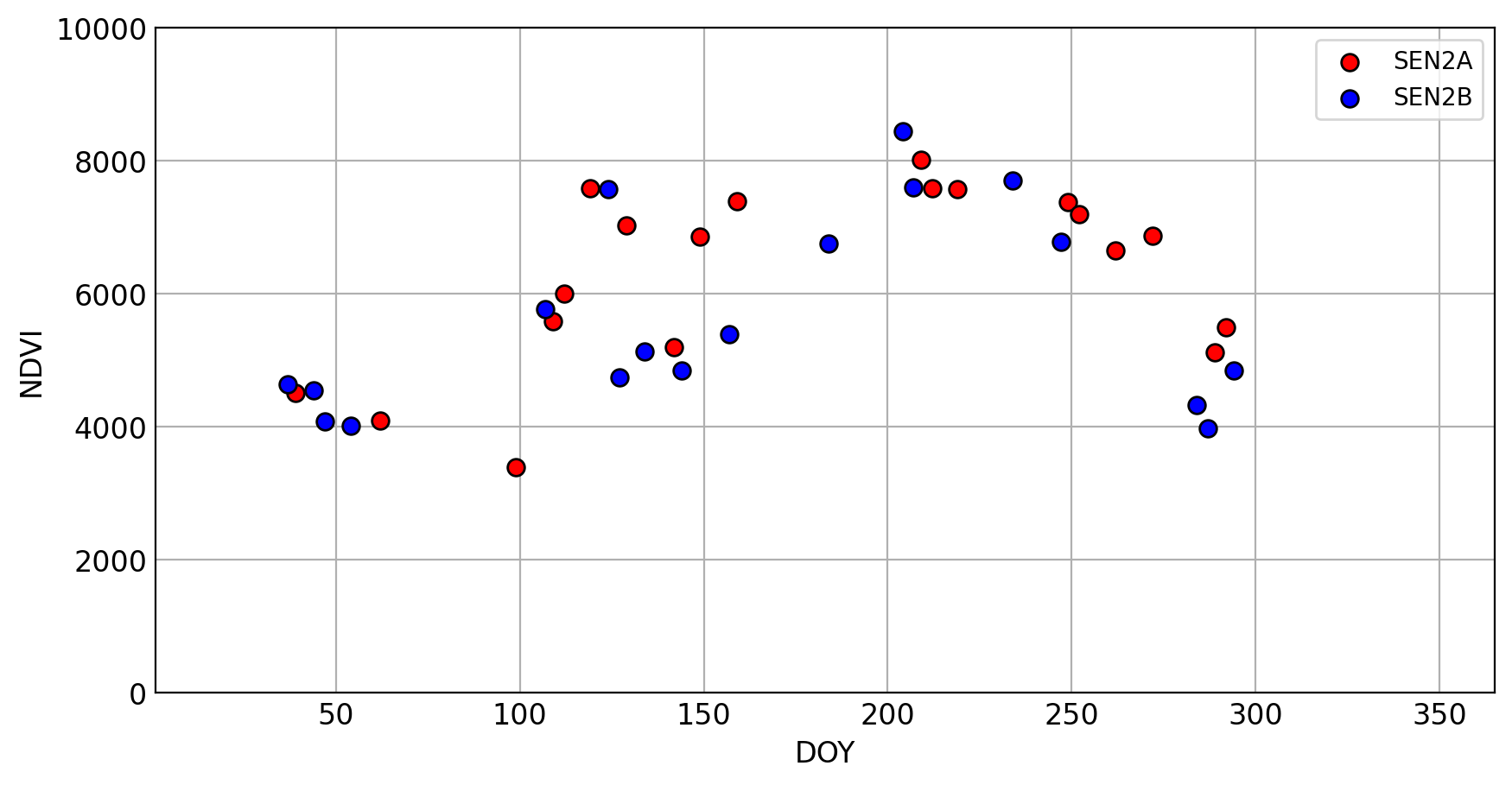

N0206 data without co-registration

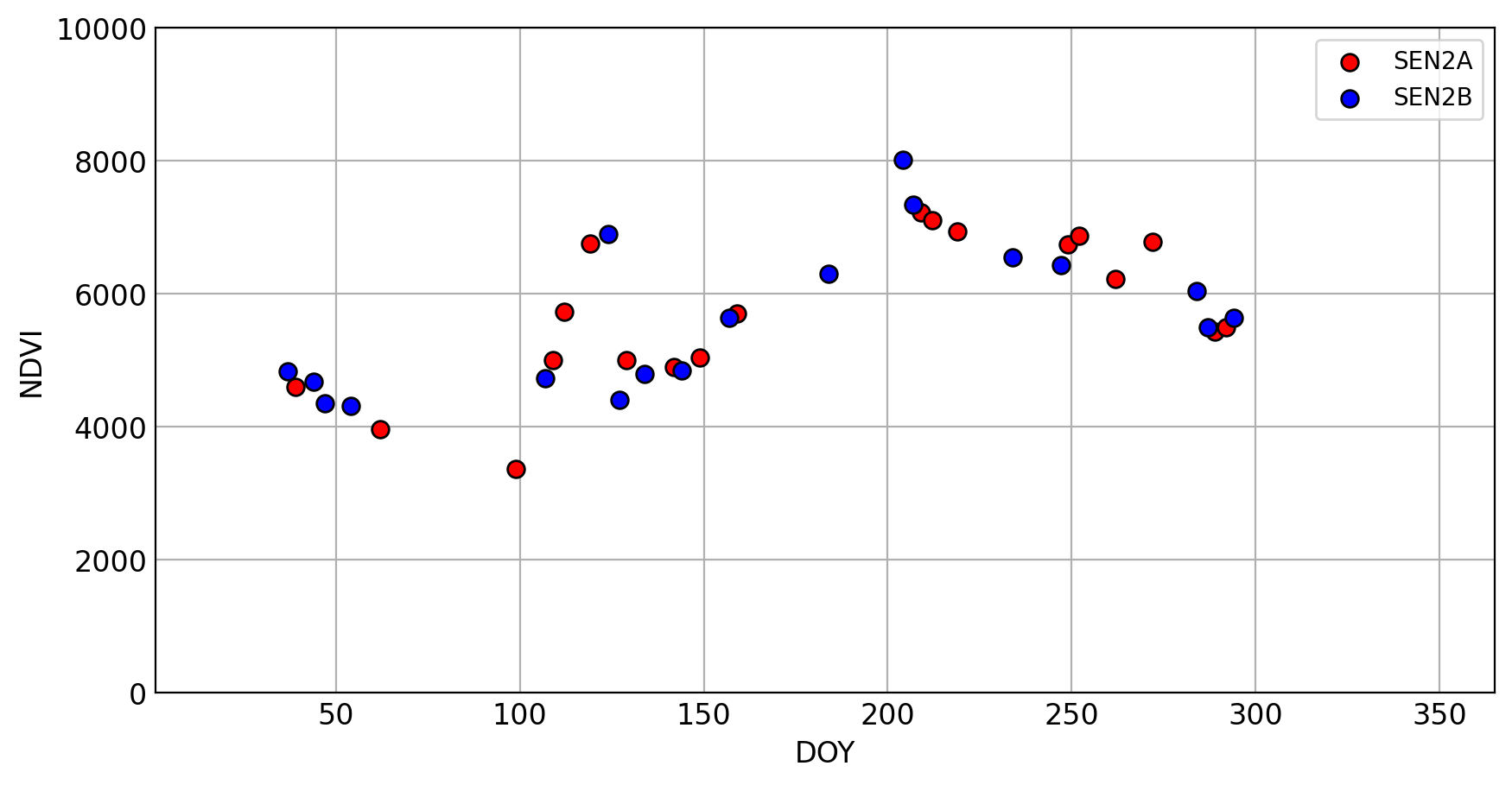

N0206 data with co-registration

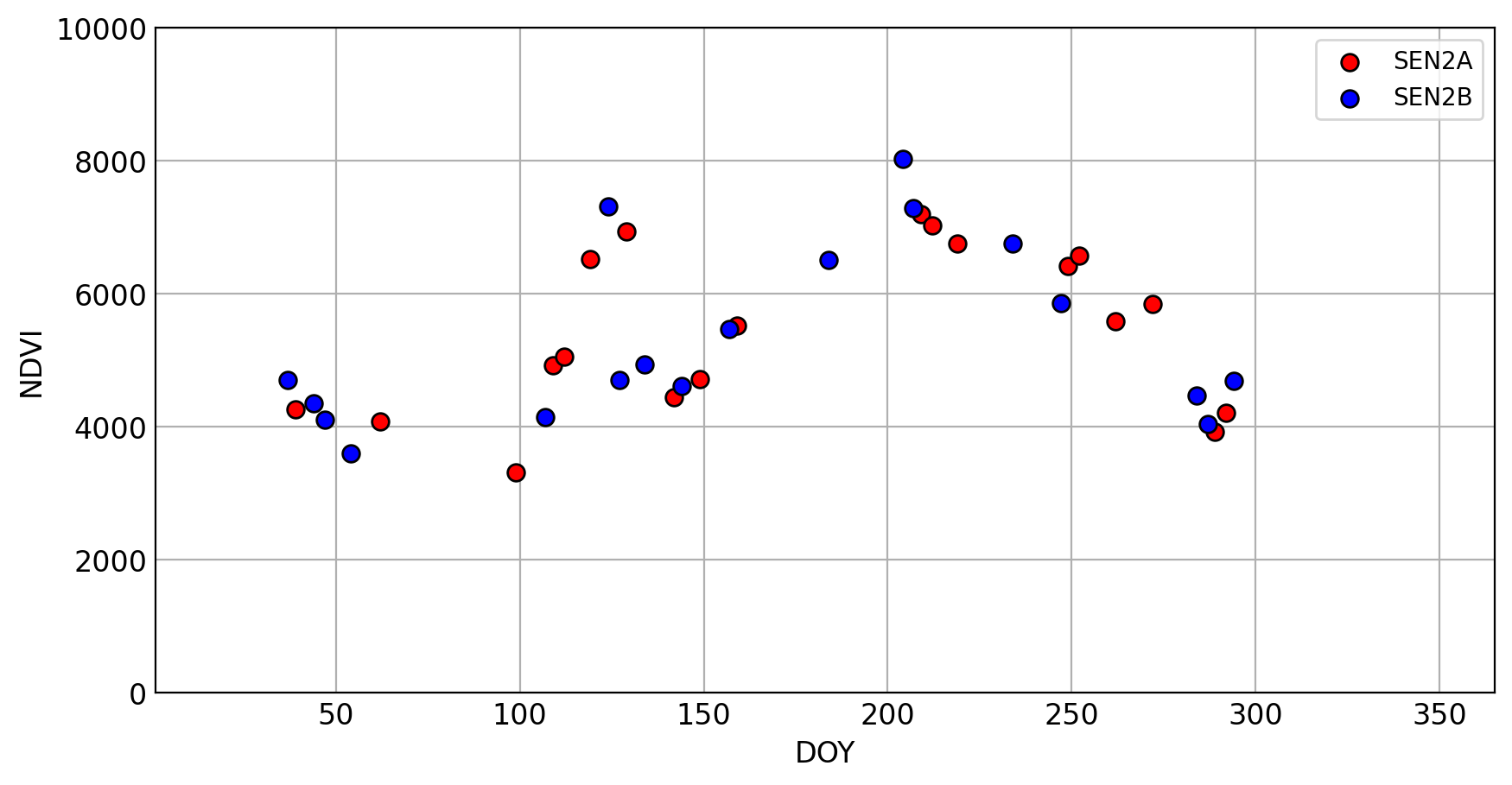

N0500 data without co-registration

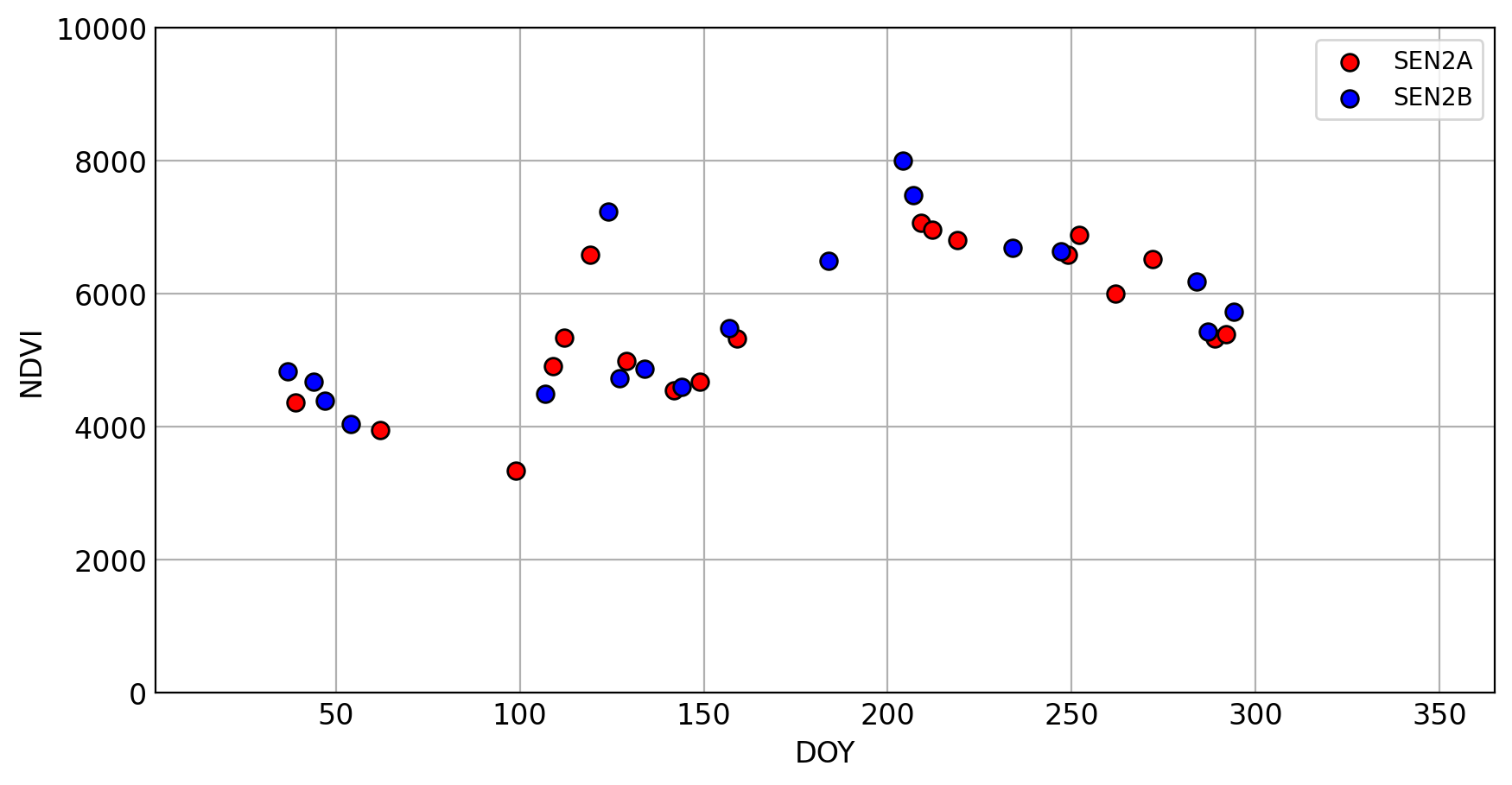

N0500 data with co-registration
- Example 2

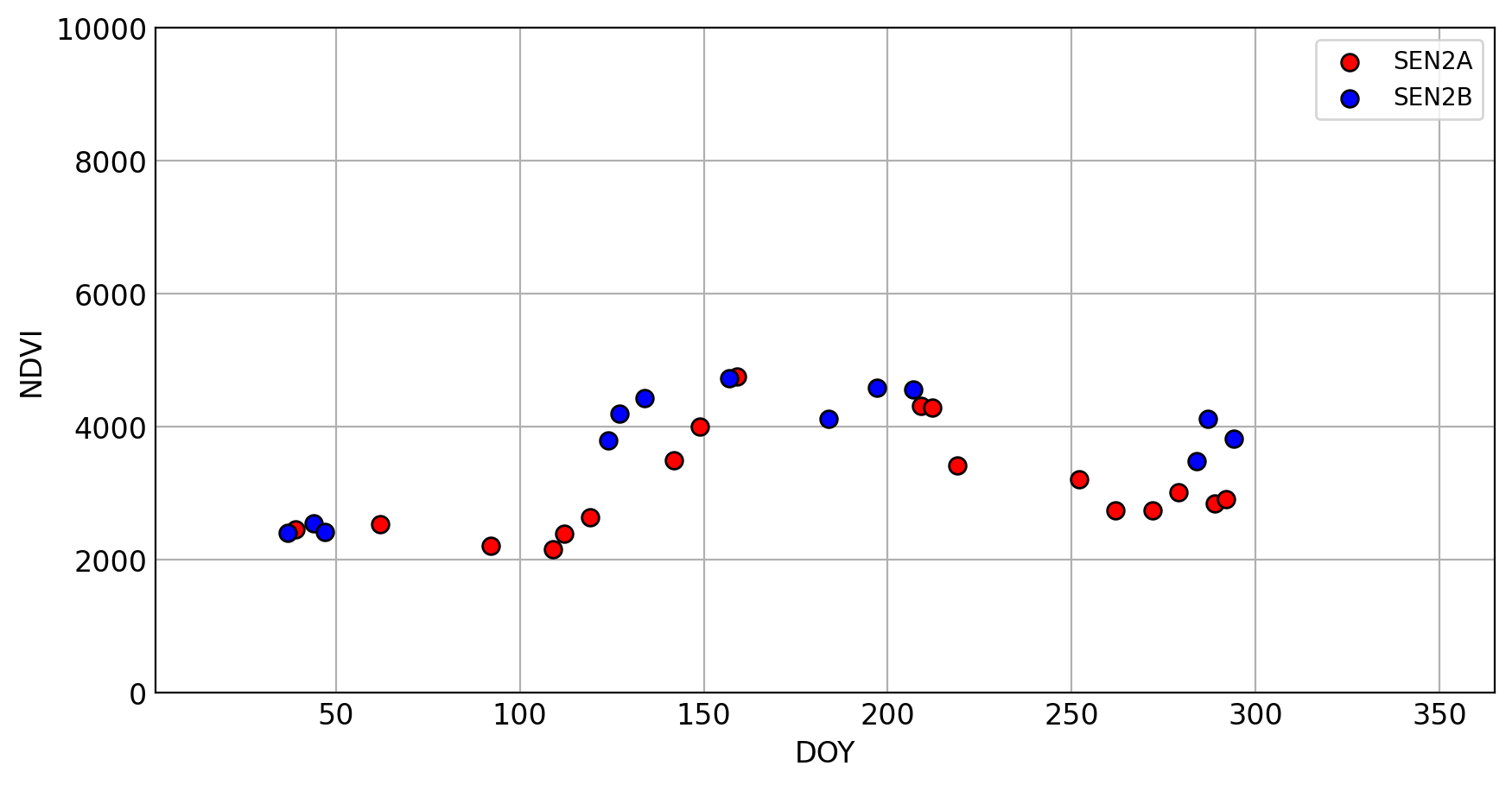

N0206 data without co-registration

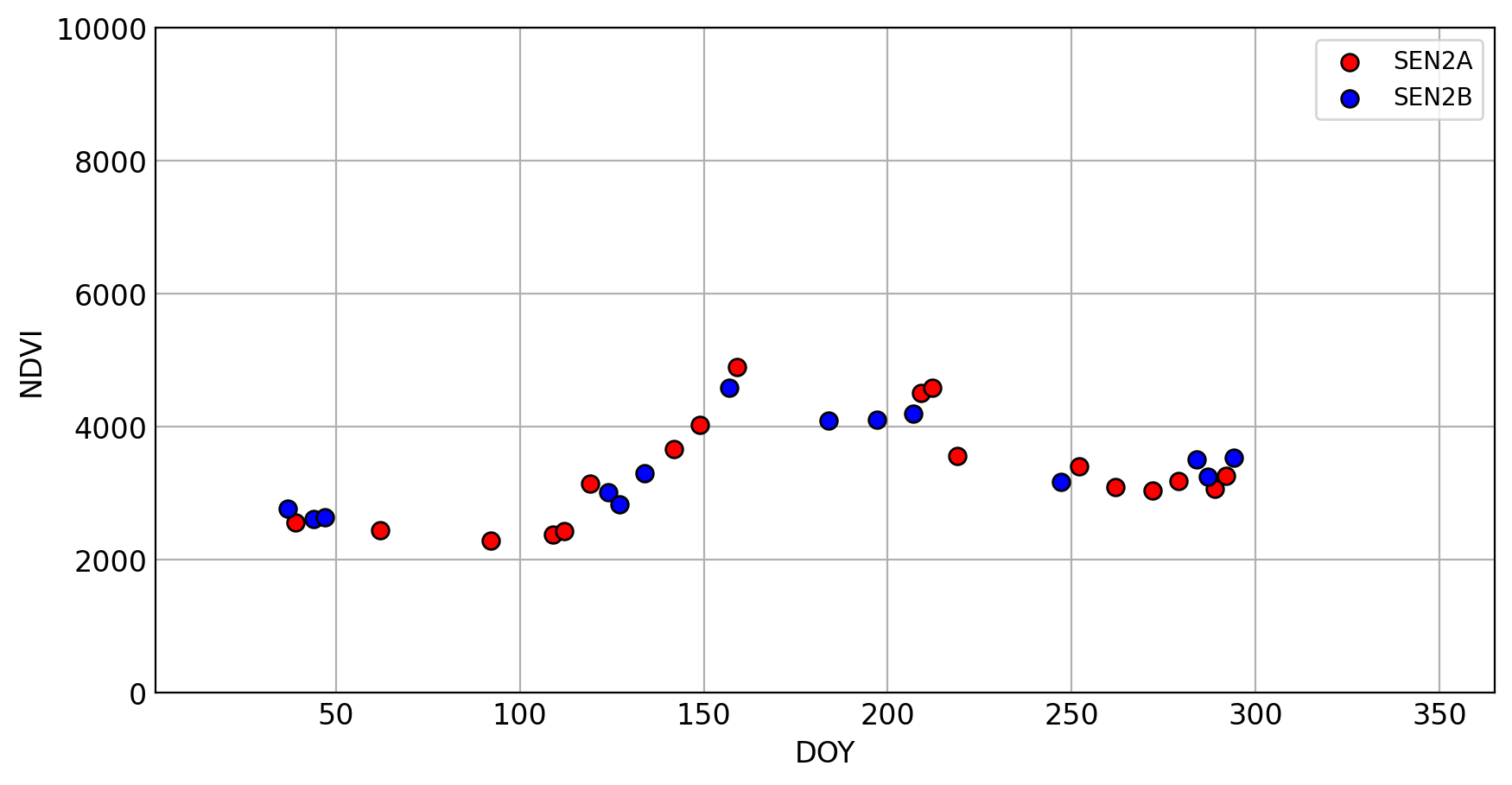

N0206 data with co-registration

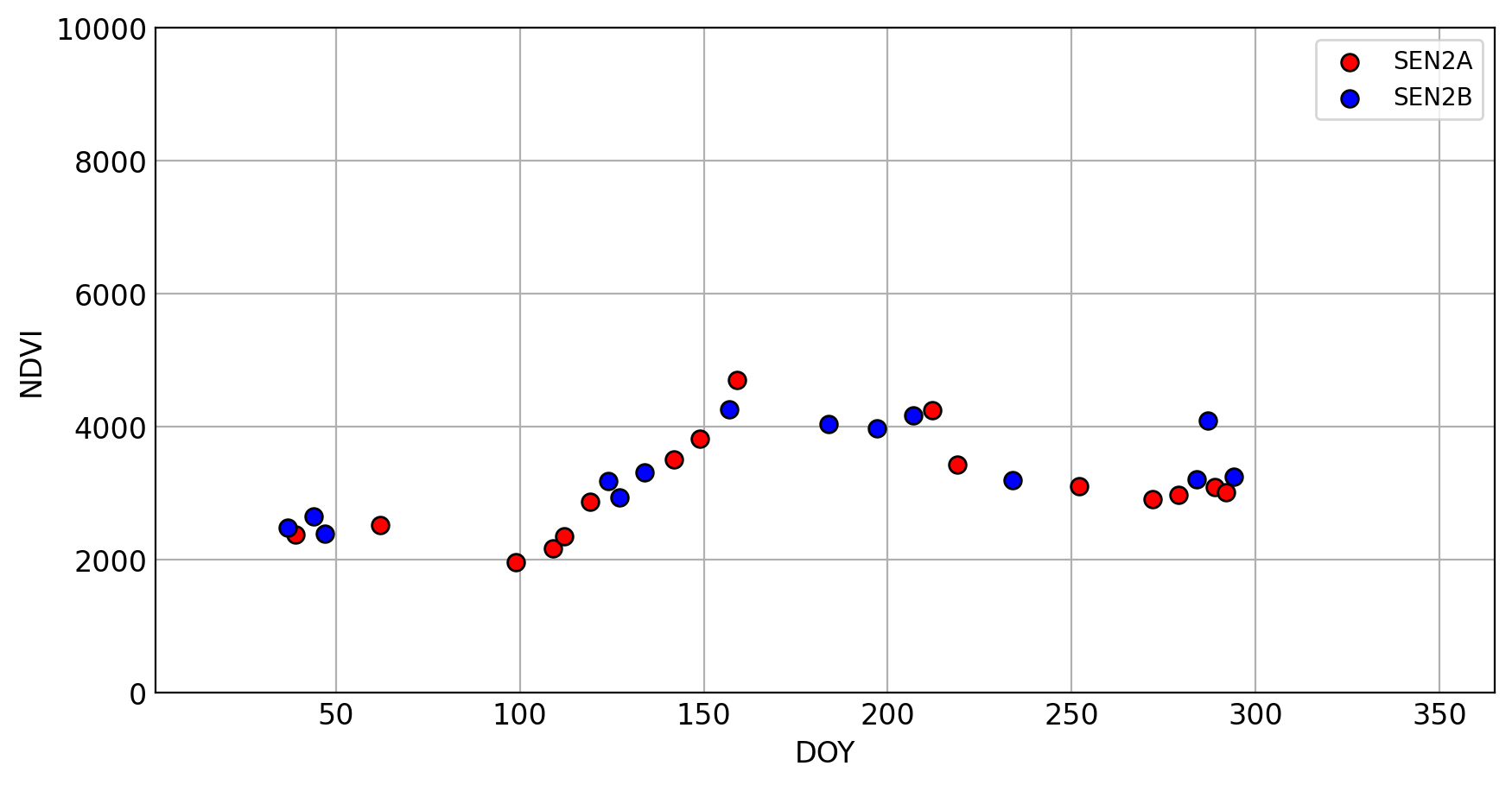

N0500 data without co-registration

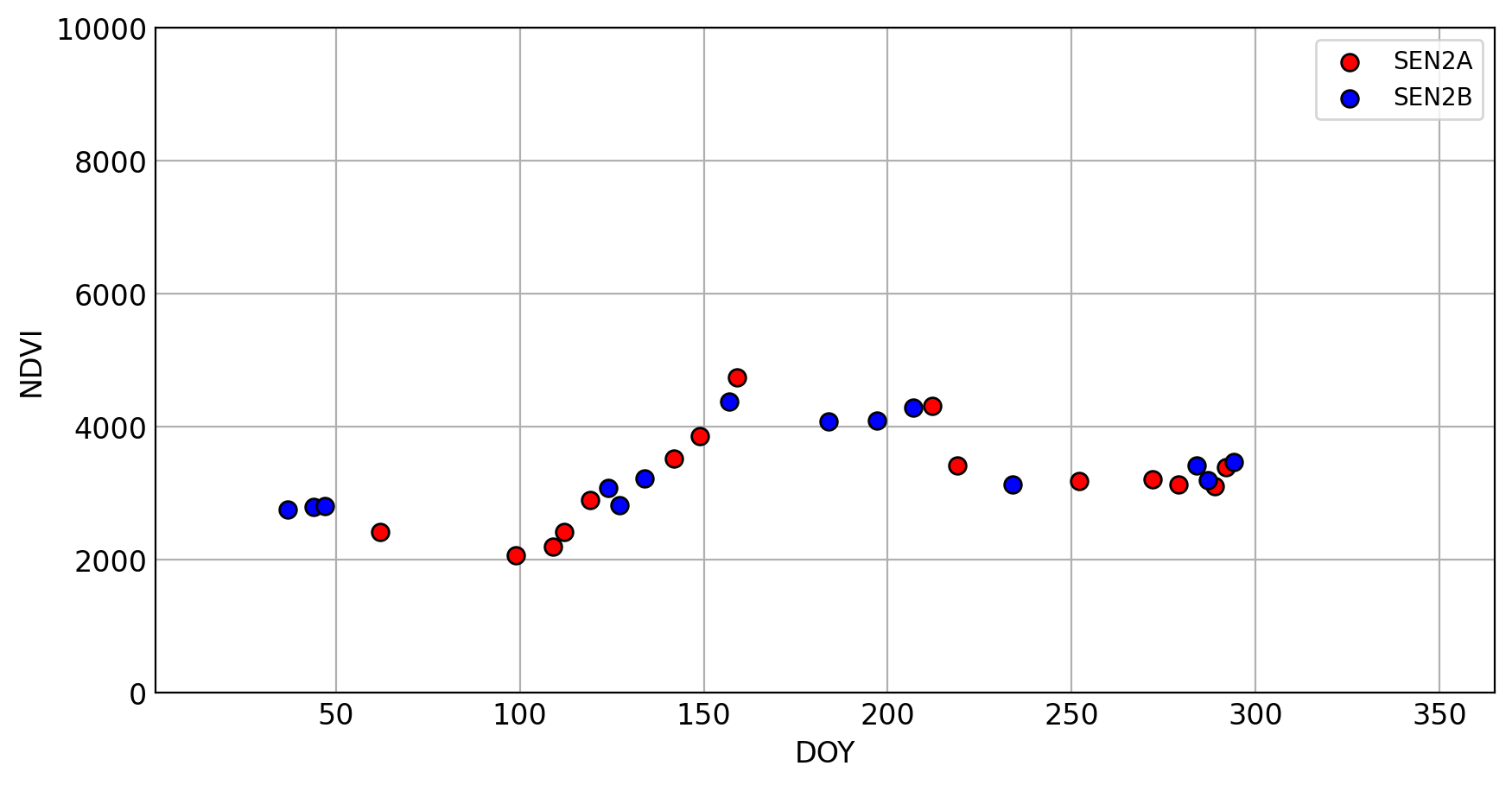

N0500 data with co-registration
